V7 – AWP
The V7 is a foiling moth that is designed to reach high performance thanks to active aerodynamic platform and optimized hull and foils. The wing generates lift that gives righting moment and driving force.
E-Skeel
The E-skeel is a 6m length foiling boat that aims to achieve fast and short travels. This boat can contain 4 people and reaches 30 knots with a high security. It is composed of 3 controlled foils and a wing that supports the secondary hulls and generates lift in order to unload the foils at high speed. This boat has a hydrogen propulsion. The E-Skeel is easily removable on a trailer.
It has been presented during the Foiling Week 2019 for the E-foiler challenge organised by the Foiling Week and supported by Gurits and Torqueedo.
Length : 6m
Beam overall : 6m
Weight : 540 kg
Crusing speed : 30 knt
Take off speed : 15 knt
MBC Project
This innovant foiling boat set oneself apart with its 60 meter’s wing combining performance and luxury space of life. It has a hydrogen propulsion.
The study includes the drawing, the boat performance and consumption, the interior design but also the structure calculations and appendices’ optimization.
We also built a prototype (scale 1/30) tested in towing tank in order to validate the concepts. It was built in Prepreg Carbone-Epoxy in our workshop.
Furthermore, the prototype and the concept were presented during the Foiling Week 2019 and exposed during the exposition “La Mer XXL” at Nantes.
Length : 45m
Beam overall : 60m
Weight : 120t
Crusing speed : 40 knt
Take off speed : 20 knt
PV32
The PV32 is an offshore racing monotype. The beam of the boat has been limited during the studies in order to allows trailer transportation. This boat is exclusively design for performance with foils and lifting keel.
The study includes the drawing, the performance calculation, the interior design but also the structure calculations and the appendices optimizations.
Length: 9.7m
Beam overall: 3m
Weight : 1.4t
Main sail surface: 49m²
Jib Surface: 23.5m²
Code 0 Surface: 78m²

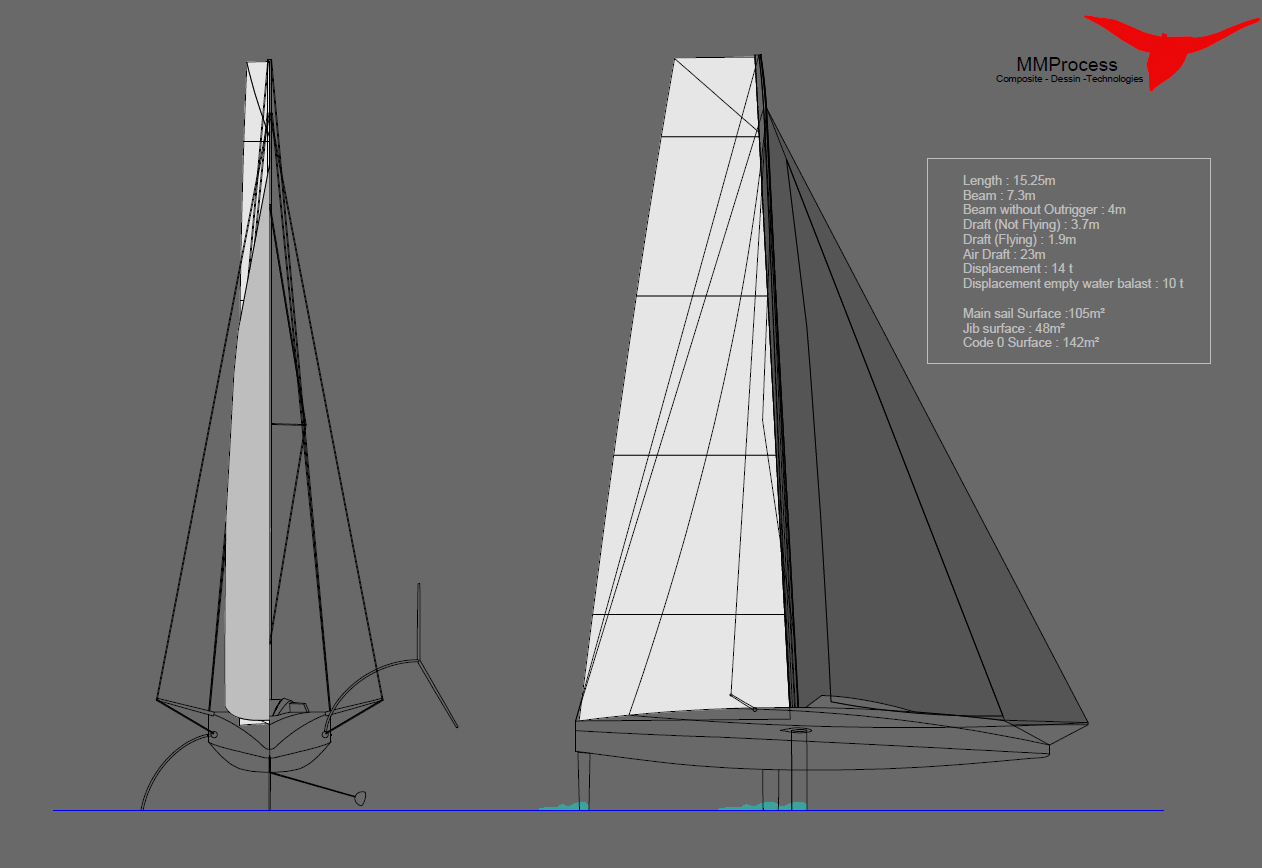

Star Rover
This boat was thought to compete a fictive race around the Americas by sailing through the Northwest Passage.
It is fitted with a deck swiper, two lifting controlled T-foils and two rudder T-foils.
All the skippers are seated and protected inside the boat for safety.
Length : 15.25m
Beam overall : 7.3m
Weight : 14t
Main sail surface : 105m²
Jib Surface : 48m²
Code 0 Surface : 142m²
Racing catamaran
This boat is a sailing catamaran fitted with foils of 38 feet. It has been designed for performance and speed. The boat has a deck swiper, an open deck, two controlled T-foils and two rudder T-foils.
The study includes the drawing, the performance calculation, the interior design but also the structure calculations and the appendices optimizations.
Length : 11.58m
Beam overall : 6.8m
Weight : 1t
Main sail surface : 60m²
Jib Surface : 30m²
Code 0 Surface : 175m²
NewCat Crusing Catamaran
The NewCat is a sailing boat of 50 feet for crusing.
Le study of this boat was principally the drawing and exterior design. Designed for a customer demand the boat follows precise specifications.
Length : 14.5m
Beam overall : 2m
Weight : 18t
Upwind sail Area : 160m²
